Tatura Waters Housing Estate Pump Station

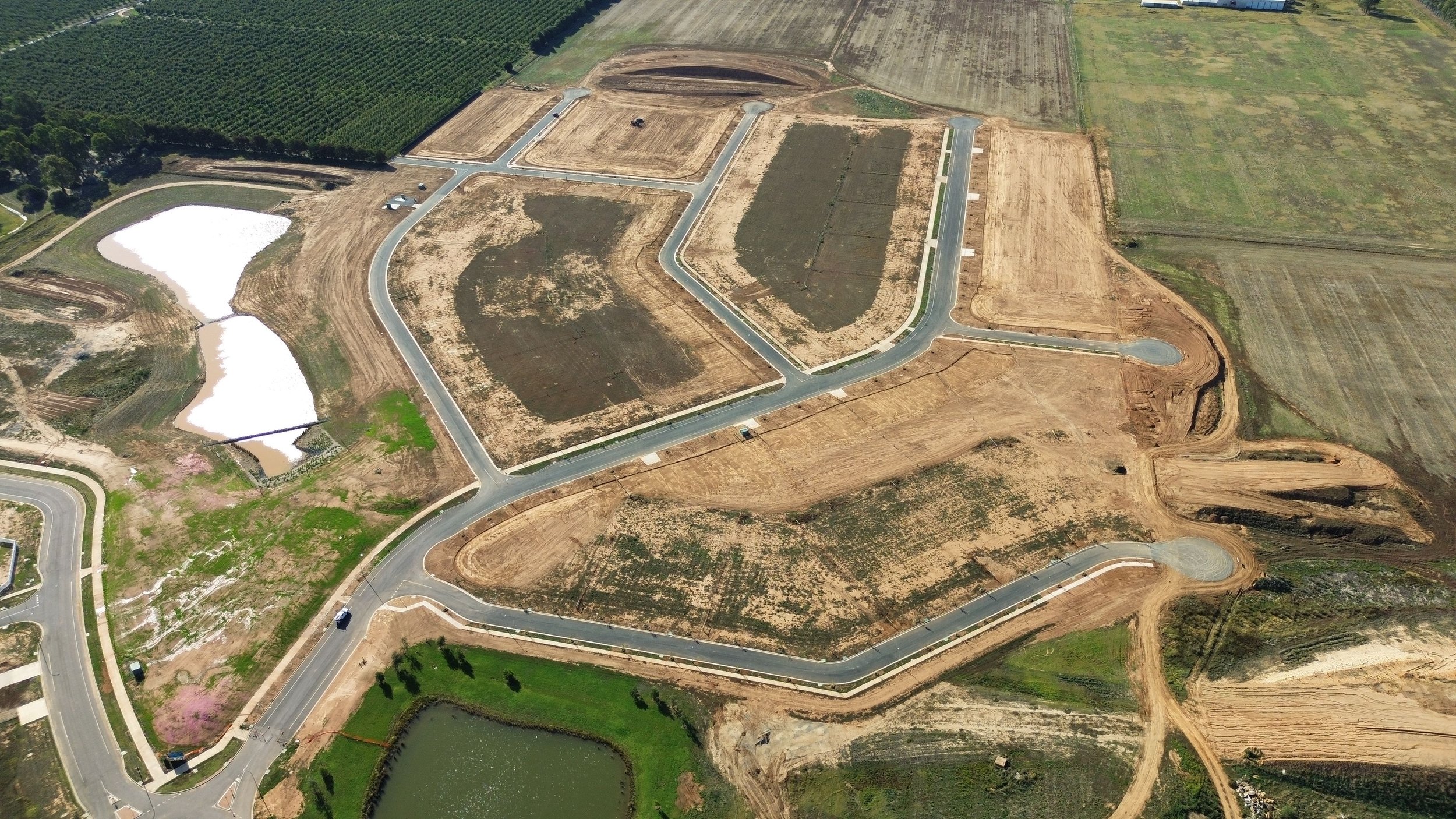

An aerial view of a construction site with roads, patches of bare soil, small bodies of water, and landscaped areas, surrounded by farmland.

Girdwood Contracting constructed Stage 2 & 3 of Tatura Waters, a 102 lot subdivision in the township of Tatura, Victoria.

Along with the construction of the roads, drainage, water main, sewer rising main, gas, power and nbn, we completed 2 pump stations:

  • Sewerage - 11 metres deep

  • Stormwater - 5 metres deep

Sewerage Pump Station

Due to high water table and free running sands, the excavation required sheet piling and tank bracing for shoring. Dewatering with spear point pumps was used throughout the excavation process. The pumpstation was a precast unit purchased through Xylem.

Two construction workers in orange safety vests and helmets are working on installing a large concrete pipe in an excavated site surrounded by steel trench supports. One worker is on a ladder, and equipment and dirt are visible around them.
Worker installing or inspecting blue underground piping system at construction site.
Underground utility construction site with large concrete manhole, black pipe, and metal support structures.
Construction site showing a large, oval concrete structure being built, possibly a pool or water feature, with tools, pipes, and construction materials scattered around.

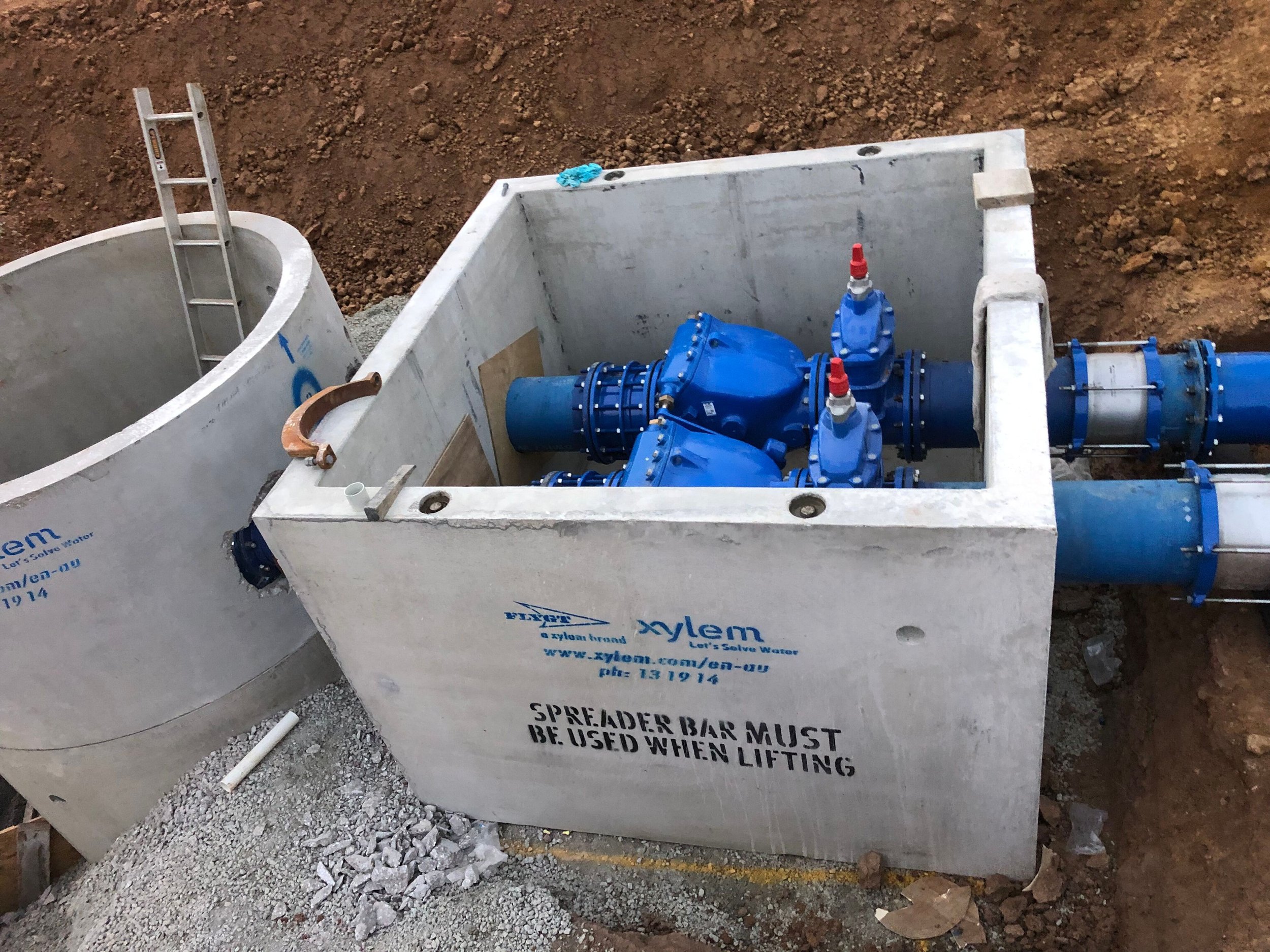

Underground water control valve system installed in a concrete box with a sign that says 'Spreader Bar Must Be Used When Lifting.'

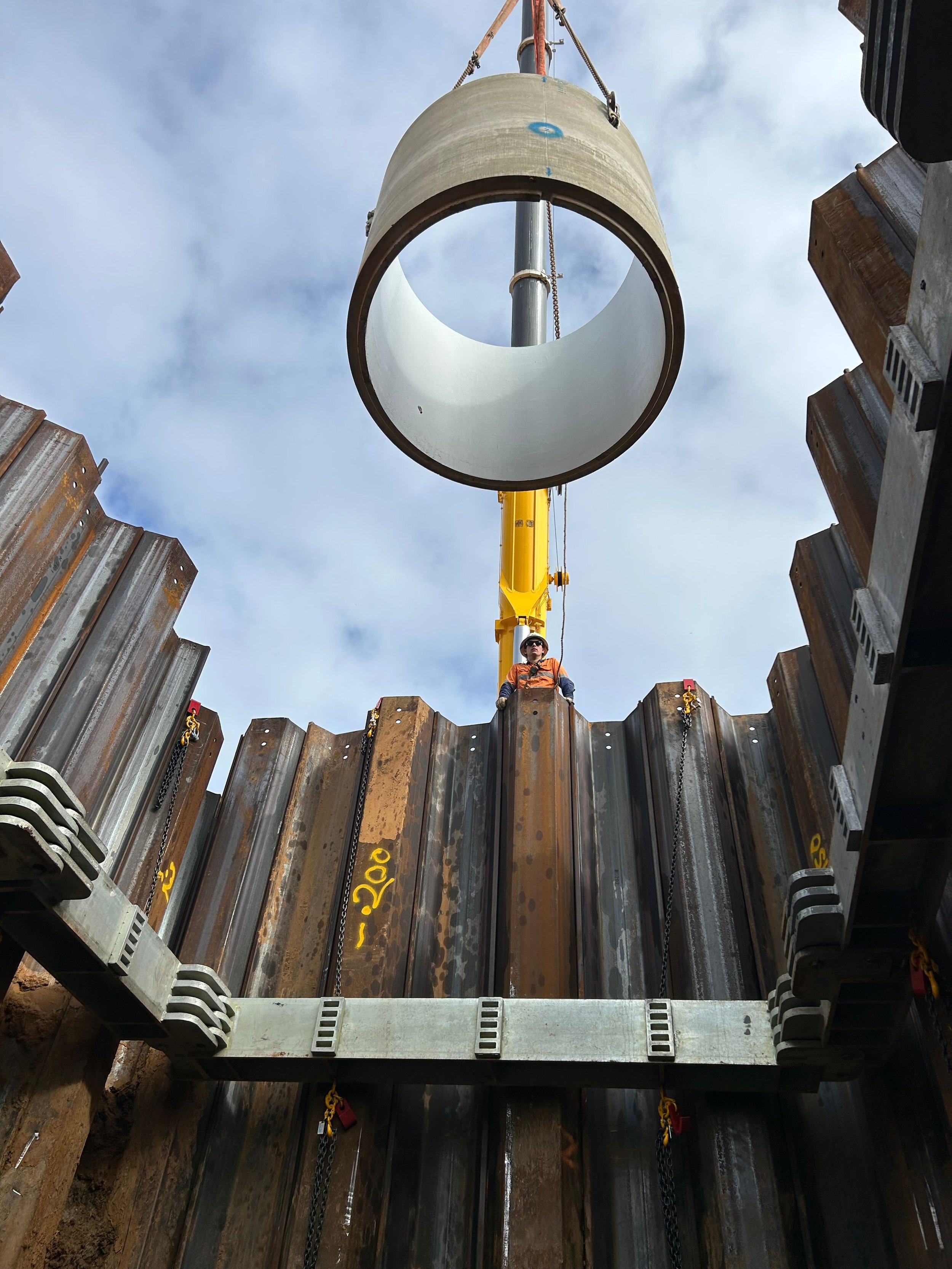

Construction worker in a safety vest and helmet standing between steel sheet piles, with a large concrete pipe and a crane overhead at a construction site.

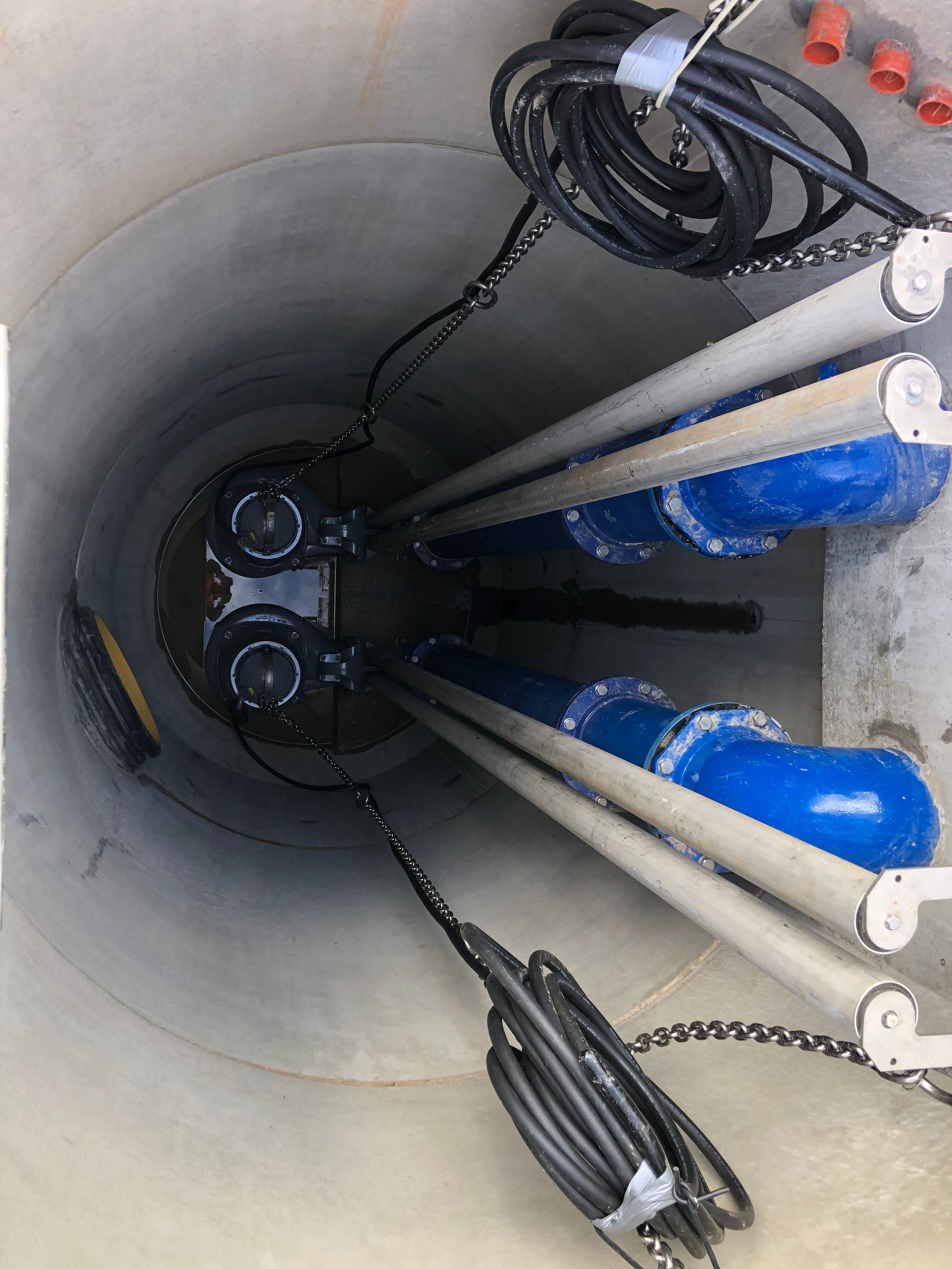

Inside a large concrete utility shaft with blue pipes, metal supports, and black cables.
Construction workers installing a large concrete pipe in a deep excavation supported by shoring walls.
